| Nguồn gốc: | Thâm Quyến Trung Quốc |
|---|---|
| Hàng hiệu: | TeXin |
| Chứng nhận: | CE ISO |
| Số mô hình: | TX-10W |
| Số lượng đặt hàng tối thiểu: | 2 |
| Giá bán: | Có thể đàm phán |
| chi tiết đóng gói: | trường hợp bền |
| Thời gian giao hàng: | 5-8 ngày |
| Điều khoản thanh toán: | L/C, D/A, D/P, T/T, Western Union, Moneygram |
| Khả năng cung cấp: | 1000/tháng |
| Tên: | Bộ khuếch đại công suất | Tính thường xuyên: | 50-7200 MHz (tùy chỉnh) |
|---|---|---|---|
| Điện áp thử nghiệm: | 28-32V | hiện hành: | 1A |
| Đầu ra: | 10W | Nhận được: | 43dBm |
| Đầu nối: | SMA / Nữ | Đầu nối đầu ra VSWR: | ≤1,30 (Không có nguồn và kiểm tra VNA) |
| dây cung cấp điện: | Dây đỏ+đen+kích hoạt | Kích thước vỏ ngoài: | 105*60*20 |
| Cân nặng: | 278g |

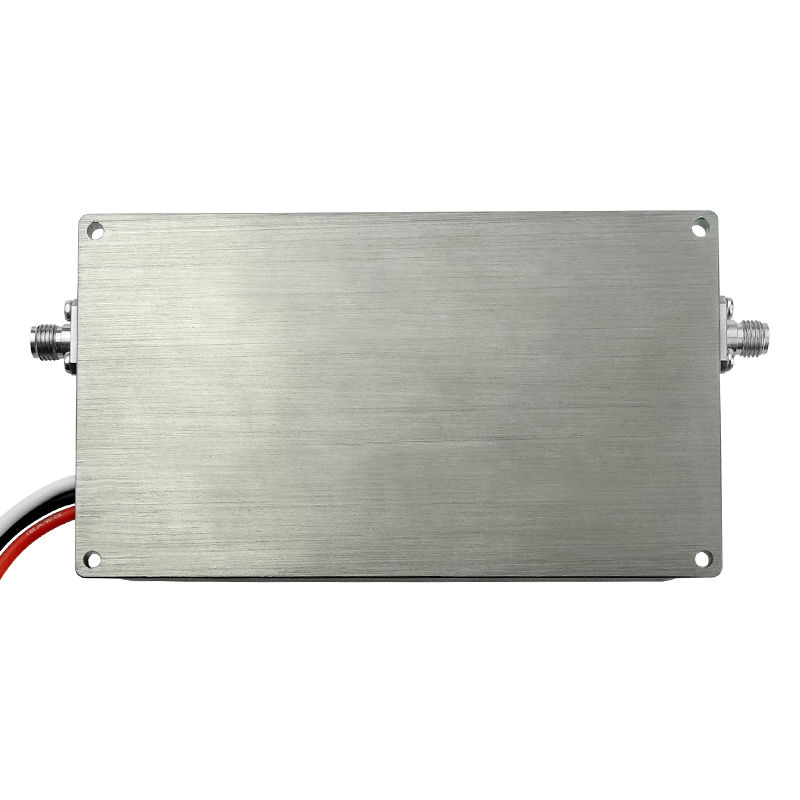

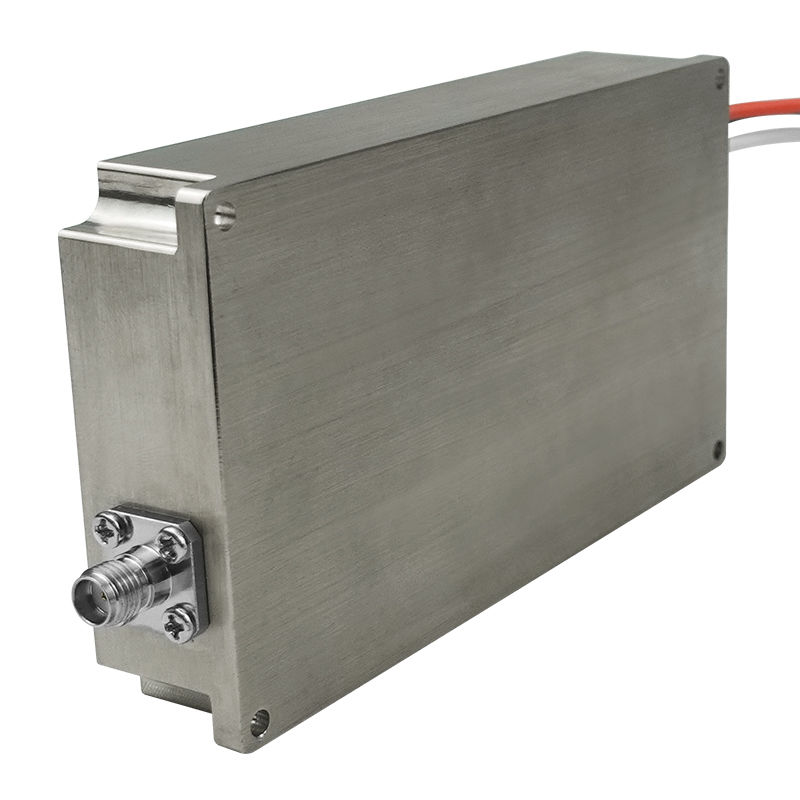

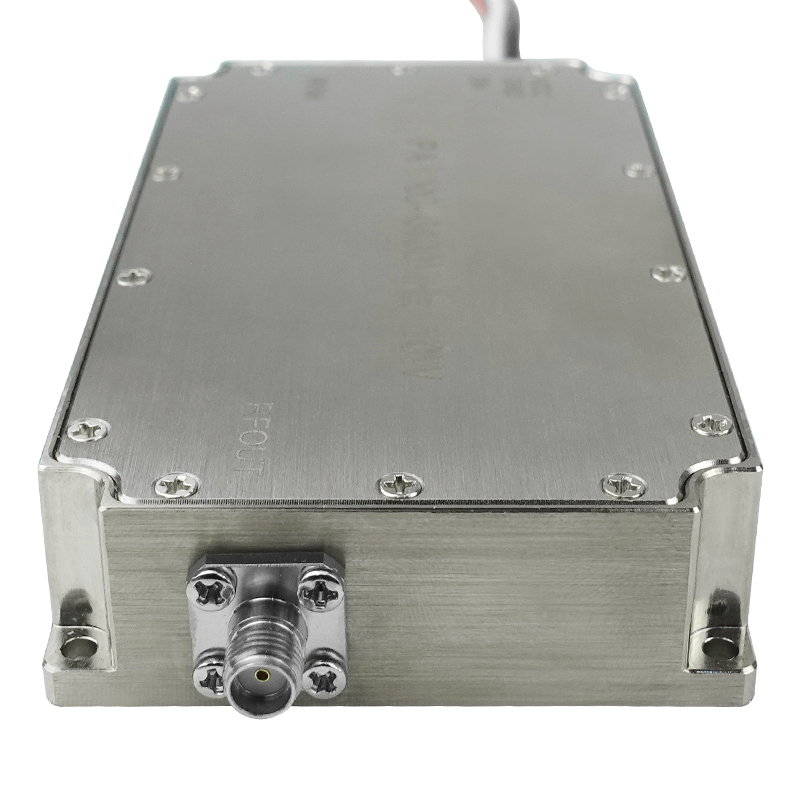

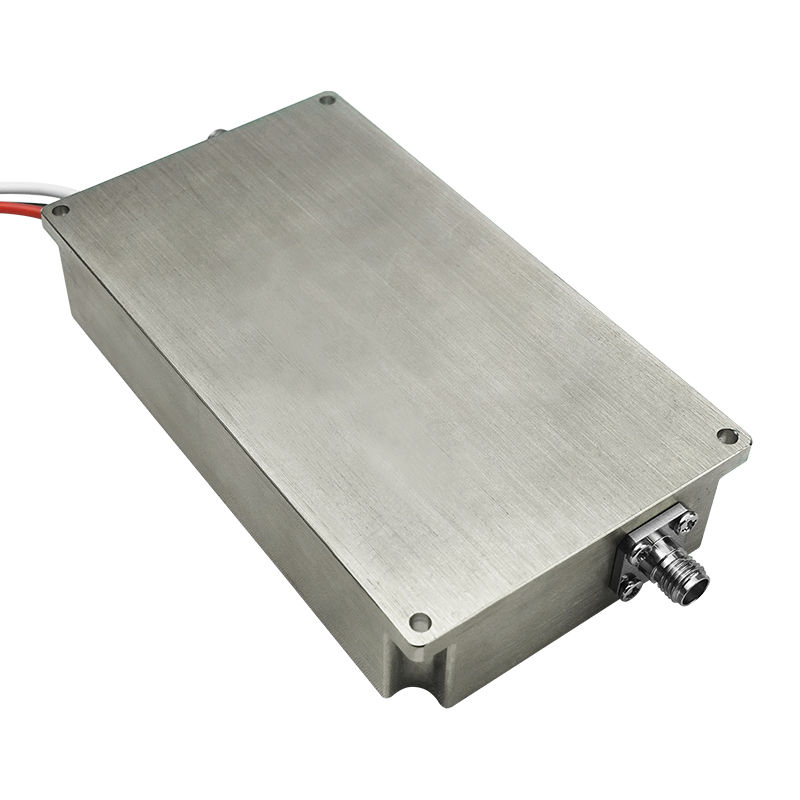

10W 50-7200MHz power amplifer module no signal source build in However, the module has been specially processed to directly cover the frequency band of 50-7000MHz. Customers can interfere with drones of corresponding frequency bands by connecting their own signal sources to achieve the purpose of protecting personal safety.
The module can be used in prisons, schools, governments, outdoor venues, concerts and other important places.
| Description | Symbol | Min | Typ | Max | Unit | Remark | |
| Operating Frequency | BW | 1.0 | 6.4 | GHz | |||
| Input Power | Pin | 0 | dBm | ||||
| Output Power CW | Psat | 40 | dBm | Continuous Wave | |||
| Power Gain | Gp | 40 | 45 | dBm | @ Pin=0 dBm | ||
| Small Singal Gain Flatness | △G | ±2.0 | @ Pin=-30 dBm | ||||
| Power Gain Flatness | △Gp | ±1.0 | dB | @ Pin=0 dBm | |||
| Spurious Suppression | Spur | -60 | dBc | ||||
| Input Return Loss | S11 | -15 | dB | ||||
| Operating Voltage | Vdc | 28 | 28 | 36 | V | ||
| Current Consumption | A | 4 | A | @ Psat | |||
| Switching Time | TON/TOFF | 2 | 5 | us | @ 1kHz TTL, Pin=0 dBm | ||
| RF Connector Input | SMA, Female | ||||||
| RF Connector Output | SMA, Female | ||||||
| Weight | 0.3 | Kg | |||||
| Length*Width*Height | 105×60×20 | mm | |||||
| Max Input Power | PinMax | ≤10 | dBm | ||||
|
(Line) |
VDD | Red Line | 28Vdc | ||||
| GND | Blake Line | Ground | |||||
| SW | White Line | Amplifier Enable(Range :+3.3V to VDD) | |||||
| 24V | 30V | 36V | ||||||||
| Freq(MHz) | input(dBm) | Pout(dBm) | I(A) | η(%) | Pout(dBm) | I(A) | η(%) | Pout(dBm) | I(A) | η(%) |
| 500 | 0 | 39.8 | 1.37 | 29.04% | 41.39 | 1.58 | 29.06% | 42.6 | 1.74 | 34.86% |
| 600 | 0 | 40.9 | 1.3 | 39.43% | 42.65 | 1.52 | 40.37% | 43.95 | 1.78 | 46.50% |
| 700 | 0 | 40.99 | 1.33 | 39.35% | 42.89 | 1.55 | 41.84% | 44.1 | 1.85 | 46.31% |
| 800 | 0 | 41.3 | 1.4 | 40.15% | 43.23 | 1.62 | 43.29% | 44.7 | 1.79 | 54.96% |
| 900 | 0 | 41.4 | 1.5 | 38.34% | 43.35 | 1.71 | 42.16% | 44.85 | 1.91 | 53.31% |
| 1000 | 0 | 41.4 | 1.52 | 37.84% | 43.38 | 1.74 | 41.72% | 44.87 | 1.94 | 52.73% |
| 1100 | 0 | 41.8 | 1.62 | 38.93% | 43.67 | 1.84 | 42.18% | 45 | 2.02 | 52.18% |
| 1200 | 0 | 41.88 | 171 | 0.38% | 43.6 | 1.92 | 39.77% | 44.75 | 2.07 | 48.07% |
| 1300 | 0 | 41.8 | 1.75 | 36.04% | 43.52 | 1.98 | 37.86% | 44.66 | 2.136 | 45.63% |
| 1400 | 0 | 41.76 | 1.69 | 36.97% | 43.43 | 1.9 | 38.65% | 44.63 | 2.059 | 47.01% |
| 1500 | 0 | 41.65 | 1.66 | 36.70% | 43.23 | 1.85 | 37.91% | 44.31 | 1.97 | 45.65% |
| 1600 | 0 | 42 | 1.71 | 38.62% | 43.61 | 1.92 | 39.86% | 44.6 | 2.038 | 47.17% |
| 1700 | 0 | 41.88 | 1.73 | 37.13% | 43.45 | 1.95 | 37.83% | 44.4 | 2.06 | 44.57% |
| 1800 | 0 | 41.75 | 1.73 | 36.04% | 43.34 | 1.98 | 36.33% | 44.33 | 2.1 | 43.02% |
| 1900 | 0 | 42 | 1.74 | 37.95% | 43.57 | 1.95 | 38.89% | 44.6 | 2.1 | 45.78% |
| 2000 | 0 | 42.3 | 1.81 | 39.09% | 43.96 | 2.06 | 40.27% | 44.89 | 2.26 | 45.47% |
| 2100 | 0 | 42.4 | 1.83 | 39.57% | 44 | 2.11 | 39.68% | 44.93 | 2.33 | 44.52% |
| 2200 | 0 | 42.3 | 1.78 | 39.75% | 43.84 | 2 | 40.35% | 44.82 | 2.24 | 45.15% |
| 2300 | 0 | 42.4 | 1.88 | 38.52% | 43.96 | 2.02 | 41.07% | 44.88 | 2.22 | 46.19% |
| 2400 | 0 | 42.4 | 2 | 36.20% | 44 | 2.16 | 38.76% | 44.69 | 2.39 | 41.07% |
| 2500 | 0 | 42.4 | 2.12 | 34.15% | 43.9 | 2.38 | 34.38% | 44.56 | 2.7 | 35.28% |
| 2600 | 0 | 42.2 | 2.15 | 32.16% | 43.6 | 2.39 | 31.95% | 44.1 | 3 | 28.56% |
| 2700 | 0 | 42.3 | 2.15 | 32.91% | 43.94 | 2.72 | 30.36% | 44.7 | 3.16 | 31.13% |
| 2800 | 0 | 42.2 | 2.04 | 33.90% | 43.96 | 2.55 | 32.53% | 44.83 | 2.96 | 34.24% |
| 2900 | 0 | 41.9 | 1.99 | 32.43% | 43.71 | 2.39 | 32.77% | 44.68 | 2.7 | 36.27% |
| 3000 | 0 | 42.2 | 1.94 | 35.64% | 43.97 | 2.25 | 36.96% | 45.11 | 2.46 | 43.95% |
| 3100 | 0 | 41.85 | 1.97 | 32.38% | 43.66 | 2.17 | 35.68% | 44.68 | 2.29 | 42.76% |
| 3200 | 0 | 41.95 | 2 | 32.64% | 43.7 | 2.3 | 33.97% | 44.81 | 2.24 | 45.04% |
| 3300 | 0 | 41.88 | 2.15 | 29.88% | 43.58 | 2.38 | 31.94% | 44.66 | 2.2 | 44.31% |
| 3400 | 0 | 41.74 | 2.18 | 28.53% | 43.54 | 2.42 | 31.12% | 44.64 | 2.3 | 42.18% |
| 3500 | 0 | 41.42 | 2 | 28.89% | 43.28 | 2.43 | 29.19% | 44.34 | 2.44 | 37.11% |
| 3600 | 0 | 41.22 | 2 | 27.59% | 43.17 | 2.44 | 28.35% | 44.31 | 2.52 | 35.68% |
| 3700 | 0 | 40.92 | 2 | 25.75% | 42.88 | 2.34 | 27.65% | 44 | 2.62 | 31.96% |
| 3800 | 0 | 40.79 | 2.17 | 23.03% | 42.51 | 2.43 | 24.45% | 43.63 | 2.52 | 30.51% |
| 3900 | 0 | 41.15 | 2.15 | 25.26% | 42.8 | 2.43 | 26.14% | 43.84 | 2.52 | 32.02% |
| 4000 | 0 | 41.58 | 2.09 | 28.68% | 43.1 | 2.41 | 28.24% | 44.11 | 2.59 | 33.16% |
| 4100 | 0 | 41.72 | 2.04 | 30.35% | 43.52 | 2.39 | 31.37% | 44.1 | 2.59 | 33.08% |
| 4200 | 0 | 41.8 | 1.88 | 33.55% | 43.22 | 2.22 | 31.52% | 44.1 | 2.57 | 33.34% |
| 4300 | 0 | 42.13 | 1.92 | 35.44% | 43.59 | 2.21 | 34.47% | 44.4 | 2.58 | 35.58% |
| 4400 | 0 | 41.87 | 1.97 | 32.53% | 43.38 | 2.2 | 33.00% | 44.26 | 2.45 | 36.28% |
| 4500 | 0 | 41.73 | 2 | 31.03% | 43.31 | 2.19 | 32.62% | 44.2 | 2.47 | 35.50% |
| 4600 | 0 | 40.96 | 2 | 25.99% | 42.77 | 2.18 | 28.93% | 43.73 | 2.48 | 31.73% |
| 4700 | 0 | 40.49 | 2.01 | 23.21% | 42.3 | 2.1 | 26.96% | 43.35 | 2.43 | 29.67% |
| 4800 | 0 | 41.18 | 1.98 | 27.61% | 42.9 | 2.14 | 30.37% | 44.1 | 2.36 | 36.31% |
| 4900 | 0 | 40.46 | 2 | 23.16% | 42.23 | 2.15 | 25.91% | 43.4 | 2.22 | 32.85% |
| 5000 | 0 | 40.91 | 2 | 25.69% | 42.6 | 2.13 | 28.48% | 43.83 | 2.25 | 35.78% |
| 5100 | 0 | 40.64 | 2.14 | 22.56% | 42.3 | 2.25 | 25.16% | 43.52 | 2.23 | 33.62% |
| 5200 | 0 | 40.78 | 2.25 | 22.16% | 42.44 | 2.42 | 24.16% | 43.63 | 2.35 | 32.72% |
| 5300 | 0 | 40.91 | 2.21 | 23.25% | 42.52 | 2.41 | 24.71% | 43.65 | 2.52 | 30.65% |
| 5400 | 0 | 40.92 | 2.32 | 22.20% | 42.57 | 2.54 | 23.72% | 43.64 | 2.52 | 30.58% |
| 5500 | 0 | 41.28 | 2.32 | 24.12% | 42.91 | 2.53 | 25.75% | 43.87 | 2.64 | 30.78% |
| 5600 | 0 | 41.31 | 2.32 | 24.28% | 43 | 2.52 | 26.39% | 44.04 | 2.62 | 32.25% |
| 5700 | 0 | 41.51 | 2.34 | 25.21% | 43.28 | 2.55 | 27.82% | 44.27 | 2.64 | 33.75% |
| 5800 | 0 | 41.62 | 2.35 | 25.75% | 43.3 | 2.57 | 27.73% | 44.26 | 2.67 | 33.29% |
| 5900 | 0 | 41.13 | 2.32 | 23.30% | 42.9 | 2.49 | 26.10% | 43.92 | 2.58 | 31.86% |
| 6000 | 0 | 41.27 | 2.33 | 23.96% | 43 | 2.5 | 26.60% | 43.03 | 2.57 | 26.06% |
| 6100 | 0 | 41.11 | 2.35 | 22.89% | 42.78 | 2.51 | 25.19% | 43.75 | 2.58 | 30.64% |
| 6200 | 0 | 40.64 | 2.28 | 21.18% | 42.23 | 2.45 | 22.74% | 43.14 | 2.49 | 27.59% |
| 6300 | 0 | 41.15 | 2.24 | 24.24% | 42.71 | 2.41 | 25.81% | 43.54 | 2.46 | 30.62% |
| 6400 | 0 | 41.06 | 2.2 | 24.17% | 42.71 | 2.38 | 26.14% | 43.33 | 2.46 | 29.17% |
| 6500 | 0 | 40.67 | 2.18 | 22.30% | 42.27 | 2.34 | 24.02% | 43.11 | 2.43 | 28.07% |
| 6600 | 0 | 40.67 | 2.2 | 22.10% | 42.29 | 2.37 | 23.83% | 43.17 | 2.49 | 27.78% |
| 6700 | 0 | 40.62 | 2.18 | 22.05% | 42.33 | 2.35 | 24.26% | 43.19 | 2.49 | 27.90% |
| 6800 | 0 | 40.95 | 2.2 | 23.57% | 42.47 | 2.37 | 24.84% | 43.36 | 2.521 | 28.66% |
| 6900 | 0 | 40.66 | 2.15 | 22.56% | 42.28 | 2.35 | 23.98% | 43.18 | 2.53 | 27.40% |
| 7000 | 0 | 41.28 | 2.12 | 26.39% | 42.91 | 2.34 | 27.84% | 43.75 | 2.51 | 31.49% |
| 7100 | 0 | 40.73 | 2.04 | 24.16% | 42.34 | 2.27 | 25.17% | 43.42 | 2.45 | 29.90% |
| 7200 | 0 | 41.15 | 1.98 | 27.42% | 42.85 | 2.52 | 25.50% | 43.92 | 2.39 | 34.39% |
| 7300 | 0 | 41 | 1.88 | 27.90% | 42.74 | 2.12 | 29.55% | 43.68 | 2.31 | 33.67% |
