| Nguồn gốc: | Quảng Đông, Trung Quốc |
|---|---|
| Hàng hiệu: | Texin |
| Số mô hình: | TX-CD100W |
| Minimum Order Quantity: | 1 |
| Giá bán: | Có thể đàm phán |
| Packaging Details: | Durable box |
| Thời gian giao hàng: | 5-7 ngày làm việc |
| Điều khoản thanh toán: | TT usd wechat paypal |
| Khả năng cung cấp: | 1000000/tháng |
| Kiểu: | Bộ khuếch đại công suất băng rộng | Trở kháng đầu ra: | 50 Ohm |
|---|---|---|---|
| Nhận được: | 50dbm | Dải tần số: | 0,1 GHz - 6,2 GHz |
| điện áp cung cấp: | 28 V | Kích cỡ: | 250*150*25mm |
| Dải tần số: | 1000 MHz đến 6200 MHz | Bảo hành: | 1 năm |
| Làm nổi bật: | FPV drone power amplifier,100W broadband power amplifier,security drone amplifier 6000MHz |
||
This broadband power amplifier is a high-performance RF power amplifier designed to meet the demanding requirements of modern wireless communications, radar, and drone countermeasures applications. Operating efficiently across a frequency range of 1000MHz to 6200MHz, this power amplifier module delivers exceptional power and gain, making it ideal for a wide range of RF amplification needs.
The amplifier features robust operation across a wide temperature range from -40°C to +65°C, ensuring reliable performance in various environmental conditions. With a 100W wattage rating and 50 dB gain, it provides substantial output power for enhanced signal strength and extended communication range while preserving signal integrity.
| No. | Item | Data | Unit |
|---|---|---|---|
| 1 | Frequency | 1000-6200 | MHz |
| 2 | Test voltage | 28-32 | V |
| 3 | Current | 9 | A |
| 4 | Output | 100 | W |
| 5 | Gain | 53 | dB |
| 6 | Output stability | 1 | dB |
| 7 | Input stability | 0-10 | dB |
| 8 | Connector | N/ Female | |
| 9 | Output connector VSWR | ≤1.30 (No power and VNA test) | |

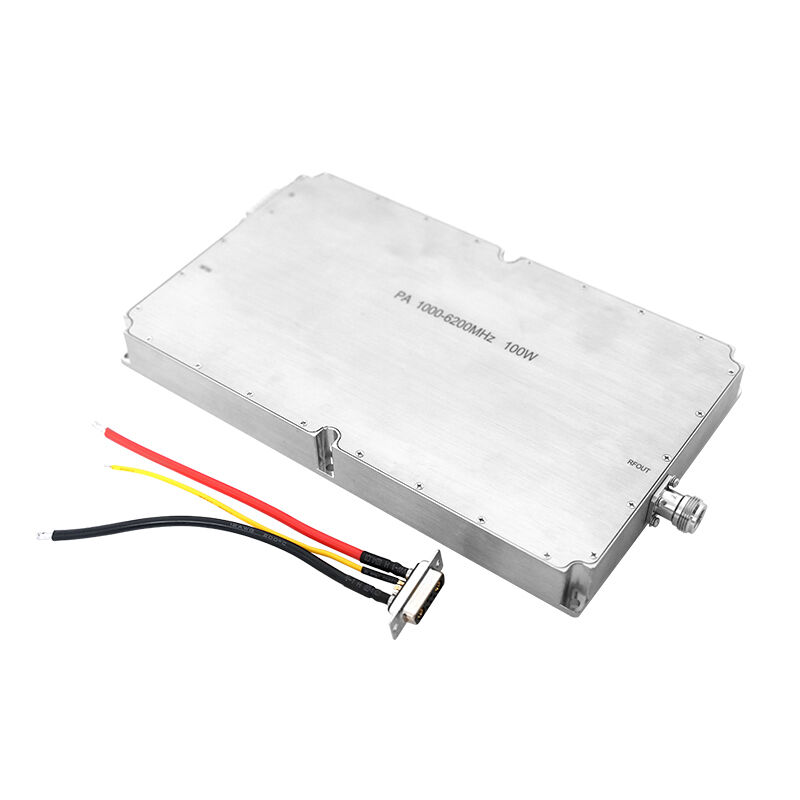

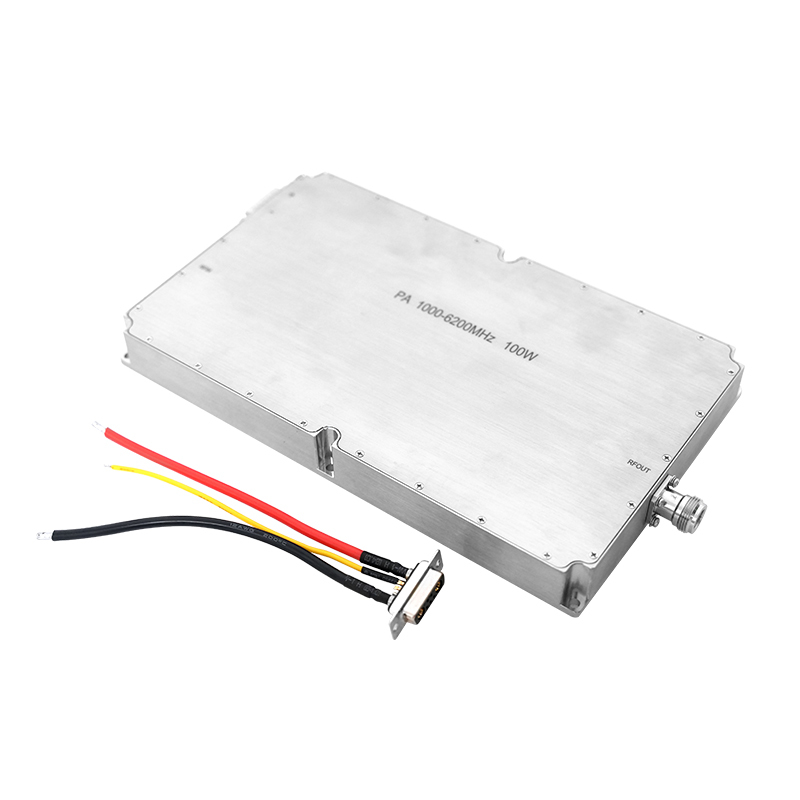

| 10 | Power supply wire | Red+Black+Enable wire | |
| 11 | Enable Control | High ON Low Off | |

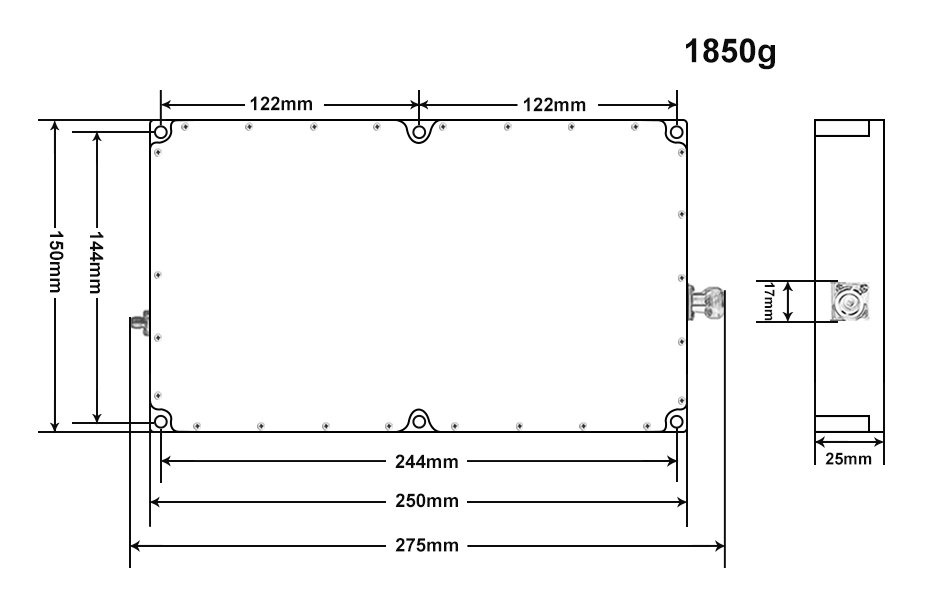

| 12 | Out shell Size | 250*150*25 | mm |
| 13 | Mount hole | 250*150 | mm |
| 14 | Weight | 1850 | g |
| 15 | Work Temperature | -40~+65 | ℃ |
| 16 | Out shell material | Aluminum | |
| 17 | Vibration need | Car load OK | |
The Texin Broadband Power Amplifier is essential for applications requiring high linearity, substantial gain, and reliable performance. It delivers exceptional amplification with 50dB gain and 100W wattage, making it ideal for robust signal boosting in telecommunications infrastructure, radar systems, satellite communication, and broadcasting equipment.
Its high linearity ensures minimal distortion, crucial for clear and accurate signal transmission in communication systems. The amplifier's compatibility with various power setups and durable construction makes it suitable for defense, aerospace, and field deployment applications.
